SMT · LABEL FEEDER · INLINE LABELING
Labels placed in the same pass as components

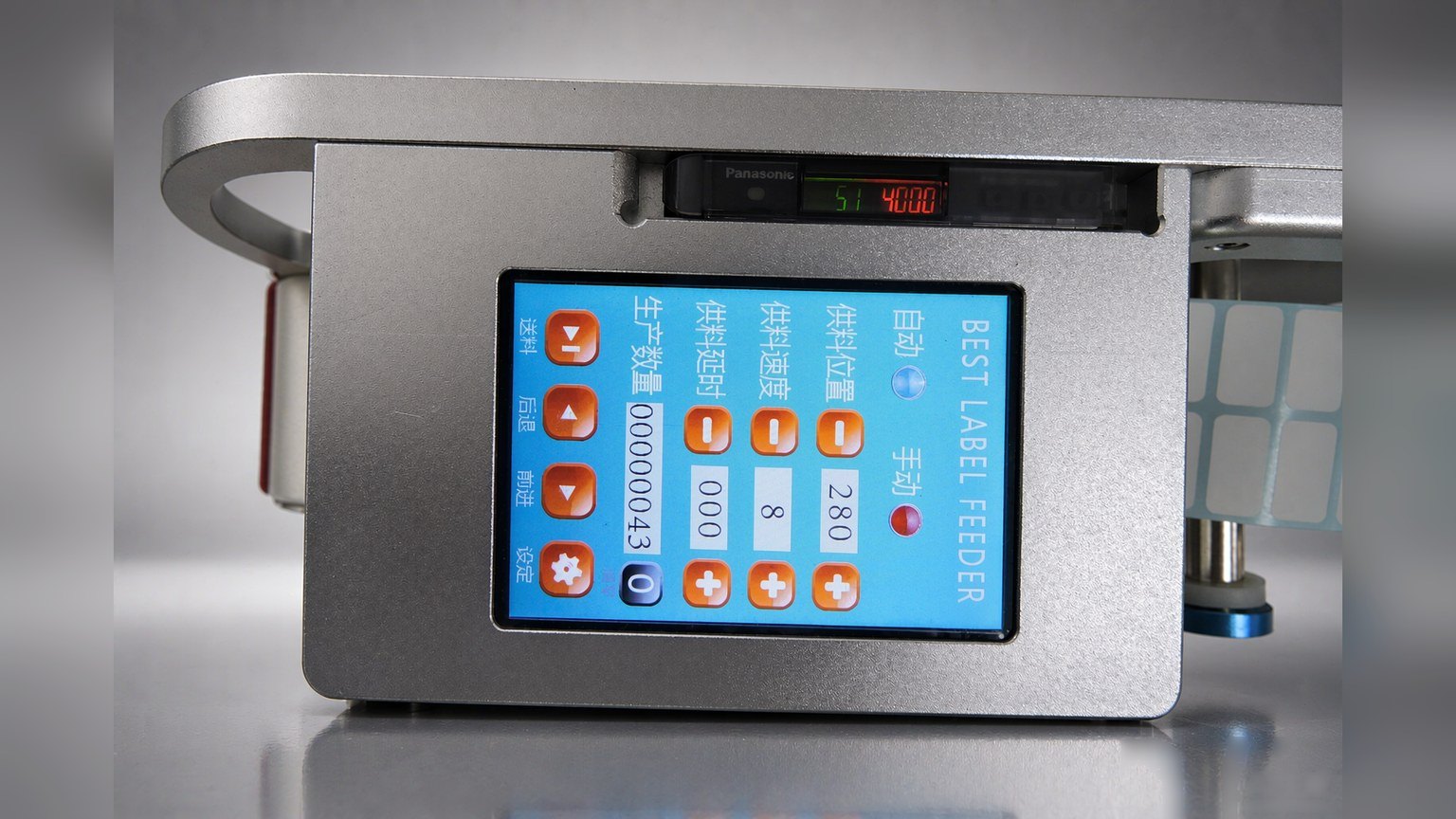

A BestFeeder label feeder mounts on the placement machine feeder platform and presents a pre-printed label at the nozzle pickup point. No separate offline labeling station, no change to the placement program.
Product lines
Four lines, one purpose: get a label onto the board without adding a station.

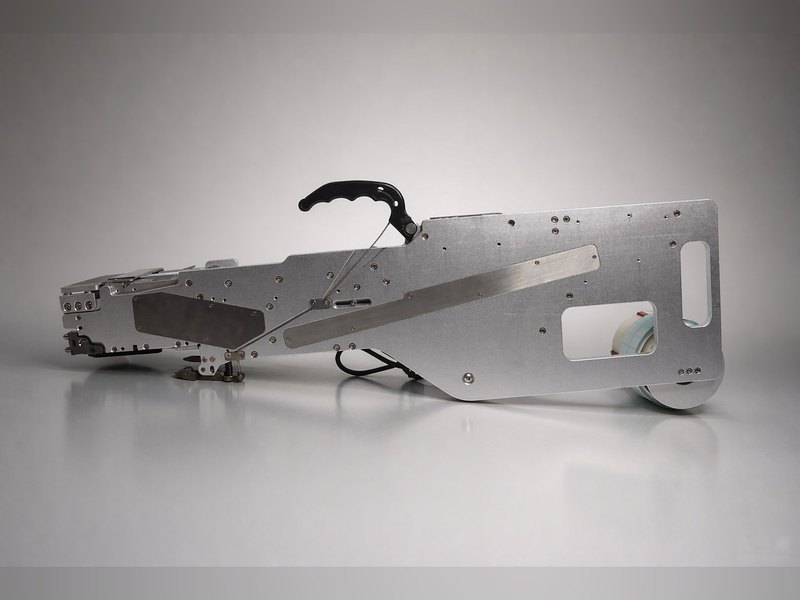

Label Feeder
Reel-fed label supply units keyed to the placement machine brand and the maximum label width.

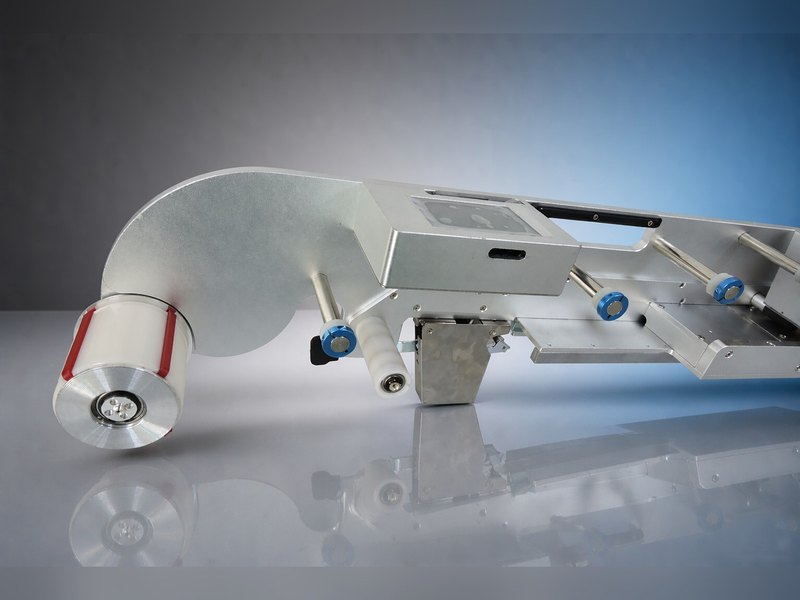

Sheet Label Feeder
Magazine-fed die-cut sheet material, no reel. Runs standalone or linked to a line.

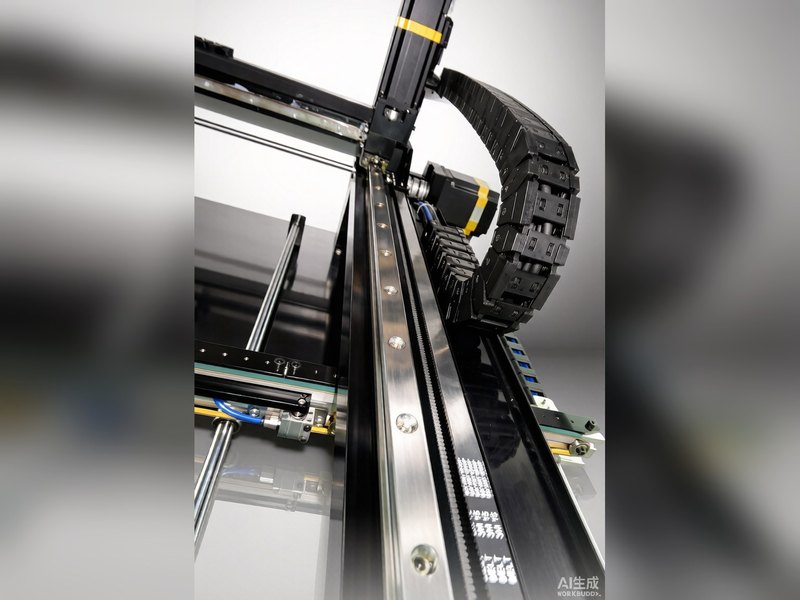

Labeling Machine
Multi-head vision and single-head robotic arm stations for work off the placement machine.

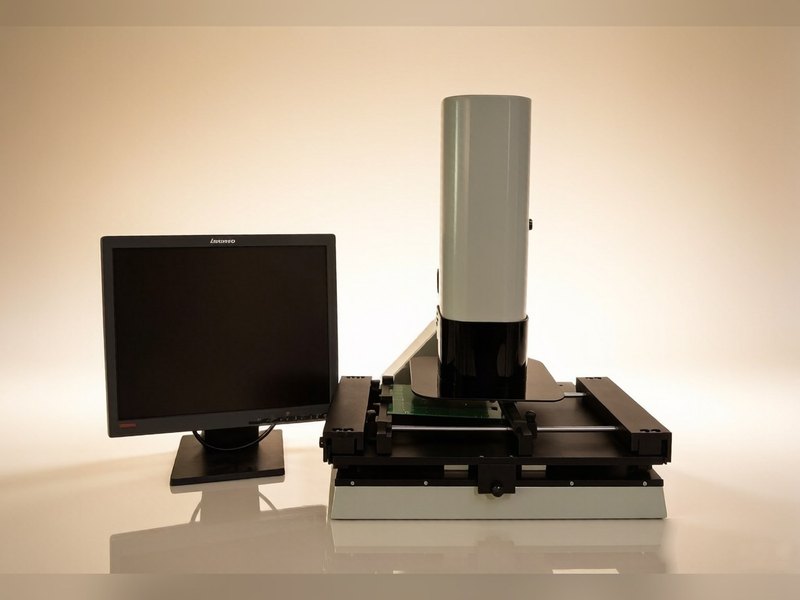

Non-standard Automation
Labeling, assembly and inspection stations built to a project brief.
Why a feeder instead of a labeling station
No extra station on the line
The feeder occupies a feeder slot on the placement platform. The label becomes one more item the nozzle picks up, on the same machine that places components.
No change to the placement program
The feeder can present labels on its own sensor. If the machine wants to drive the feed, it supplies a signal on the green wire; otherwise the feeder feeds when the label table is empty.
Width and columns to match the label
Models run from 2 mm to 248 mm label width, with 1 to 14 columns. One feeder covers the whole range up to its model limit, so a range of label jobs shares the same unit.
Reel and material flexibility
Beyond paper labels, the same feeder handles FPC stiffeners, Mylar tape, foam, thermal pads, dust mesh and high-temperature tape on roll.
Placement machines covered
Nine machine groups across the label feeder range, plus four structure variants for custom platforms.
| Placement machine | Models |
|---|---|
| FUJI NXT series | LFFUJI-100, LFFUJI-32 |
| JUKI KE700 / KE2000 / FX / JX / JM | LFJUKI-100, LFJUKI-32 |
| PANASONIC NPM / CM602 / CM402 | LFPANA-100, LFPANA-60, LFPANA-32 |
| YAMAHA YS series | LFYAMAHA-32/60/100 YS |
| YAMAHA YV series | LFYAMAHA-60/100 YV |
| ASM D series, HS50, HS60 | LFSID-100, LFSID-60, LFSID-32 |
| ASM X series | LFSIX-60, LFSIX-32 |
| Samsung (Hanwha) SM / SME series | LFSUMSUNG-60 |
| Non-standard / custom platforms | LFSID-S, LFSID-M, LFS, LFHZXB series |
Frequently Asked Questions
What is an SMT label feeder and how does it work?
An SMT label feeder is a servo-driven supply unit that mounts in a feeder slot on the placement machine platform and presents pre-printed labels at the nozzle pickup point. The label is then placed in the same pass as the components, so no separate offline labeling station is added and the placement program does not have to change. BestFeeder builds 31 reel-fed label feeder models covering 2 mm to 248 mm label width.
Which placement machines do BestFeeder label feeders fit?
Model prefixes map to machine groups: LFFUJI for FUJI NXT, LFJUKI for JUKI KE700 / KE2000 / FX / JX / JM, LFPANA for PANASONIC NPM / CM602 / CM402, LFYAMAHA for YAMAHA YS and YV, LFSUMSUNG for Samsung (Hanwha) SM / SME, LFSID for ASM D series and HS50 / HS60, and LFSIX for ASM X series. Non-standard platforms use the LFSID-S, LFSID-M, LFS and LFHZXB bodies.
What label sizes can a BestFeeder label feeder place?
Label width runs from 2 mm to 248 mm across the reel-fed range, with 1 to 14 columns per feed and ±0.2 mm positioning accuracy. A model takes any label up to its stated limit, so LFFUJI-100 covers labels up to 100 mm wide while LFSID-250S reaches 248 mm. The column count has to reach the number of labels presented side by side in one row.
